ANENG AL01 Inductance Digital Multimeter 6000 Counts True-RMS AC/DC Voltage Meter Current Tester Professional Electrician Tools
SPECIFICATIONS
AC Current: 0A-10A
AC Voltage: 0V-750V
ANENG Model: AL01
Automatic shut-down: Yes
Battery: AAA battery*2-without shipment
Battery Included: No
Brand Name: ANENG
Certification: CE
Choice: yes
DC Current: 0A-10A
DC Voltage: 0V-1000V
DIY Supplies: Electrical
Date retention: Yes
Dimensions: 131*65.5*33 MM
Diode Test: Yes
Display Type: Digital Display
High-concerned chemical: None
L Inductance: 0mH-60H
Max Count: 6000 COUNTS
Measuring Capacitance Range: 0nF-60mF
Measuring Inductance Range: ANENG Digital Multimeter
Measuring Resistance Range: 0-60 MOhm
Model Number: ANENG AL01 Multimeter
NCV detection: Yes
Operating Mode: Manual Range
Operating Temperature: 0 - 40 ℃
Origin: Mainland China
True RMS: Yes
Inductance Digital Multimeter 6000 Count True-RMS

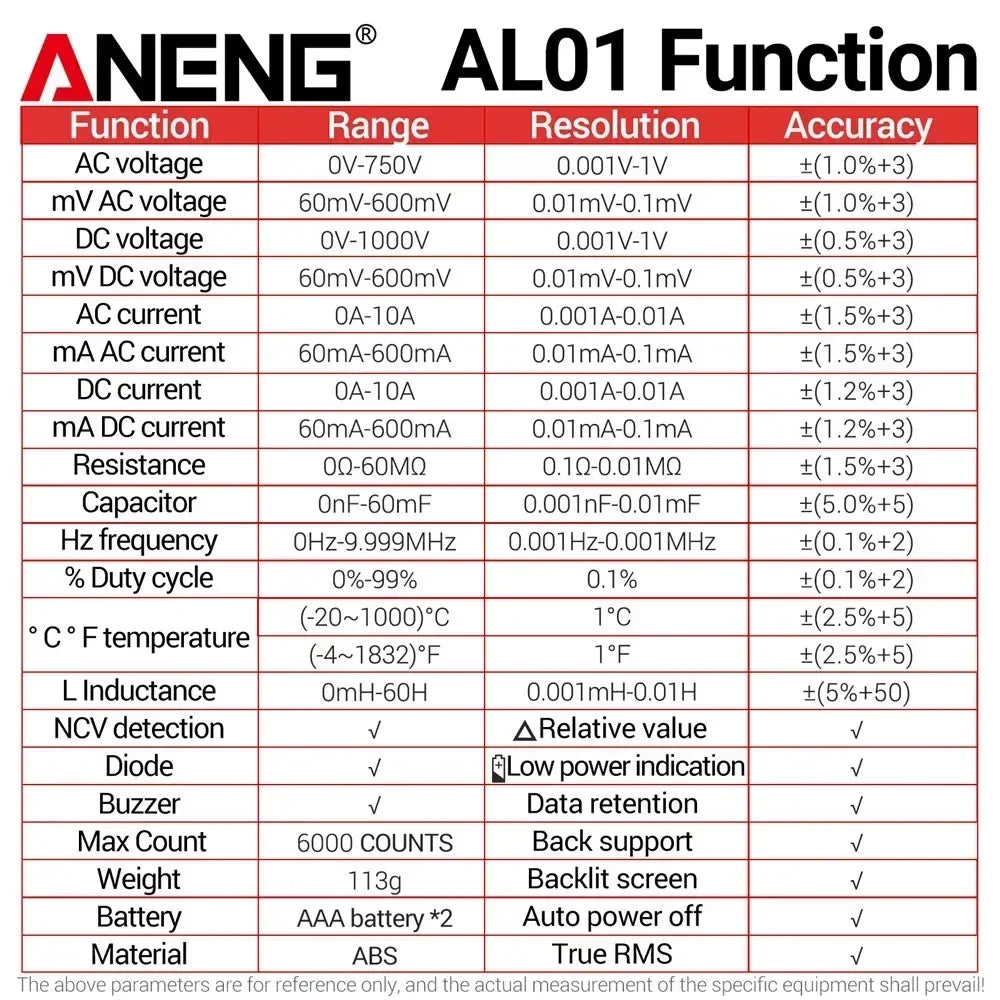

Feature:
Function |
Range |
Resolution |
Accuracy |
AC voltage |
0V-750V |
0.001V-1V |
± (1.0%+3) |
mV AC voltage |
60mV-600mV |
0.01mV-0.1mV |
± (1.0%+3) |
DC voltage |
0V-1000V |
0.001V-1V |
±(0.5%+3) |
mV DC voltage |
60mV-600mV |
0.01mV-0.1mV |
±(0.5%+3) |
AC current |
0A-10A |
0.001A-0.01A |
±(1.5%+3) |
mA AC current |
60mA-600mA |
0.01mA-0.1mA |
±(1.5%+3) |
DC current |
0A-10A |
0.001A-0.01A |
±(1.2%+3) |
mA DC current |
60mA-600mA |
0.01mA-0.1mA |
±(1.2%+3) |
Resistance |
0 Ω -60M Ω |
0.1Ω-0.01MΩ |
±(1.5%+3) |
Capacitor |
0nF-60mF |
0.001nF-0.01mF |
±(5.0%+5) |
Hz frequency |
0Hz-9.999MHz |
0.001Hz-0.001MHz |
±(0.1%+2) |
% Duty cycle |
0%-99% |
0.1% |
±(0.1%+2) |
°C °F temperature |
(-20~1000)℃ |
1℃ |
±(2.5%+5) |
(-4~1832)°F |
1°F |
±(2.5%+5) |
|

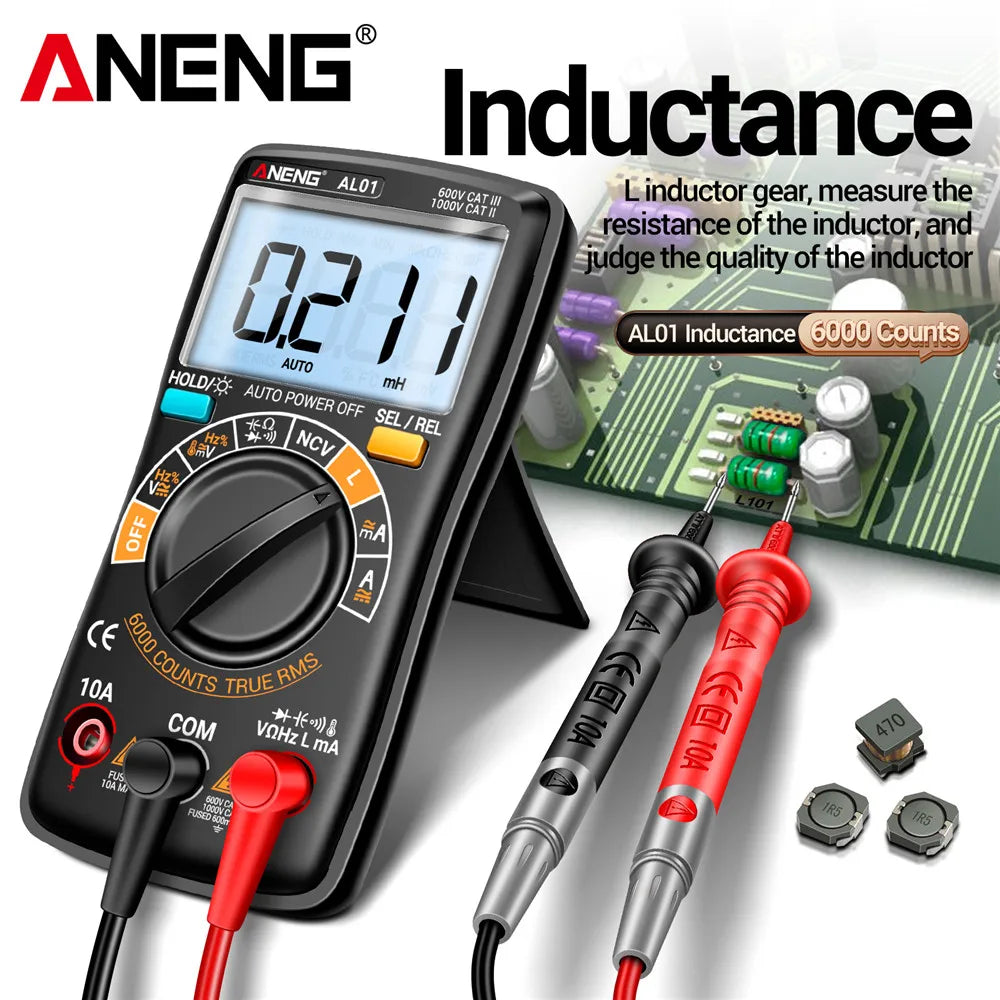

L lnductance |
0mH-60H |
0.001mH-0.01H |
±(5%+50) |
NCV detection |
√ |
Relative value |
√ |
Diode |
√ |
Low power indication |
√ |
Buzzer |
√ |
Data retention |
√ |
Max Count |
6000 COUNTS |
Back support |
√ |
Backlit screen |
√ |
||
Battery |
AAA battery *2(without Battery) |
Auto power off |
√ |
Material |
ABS |
True RMS |
√ |

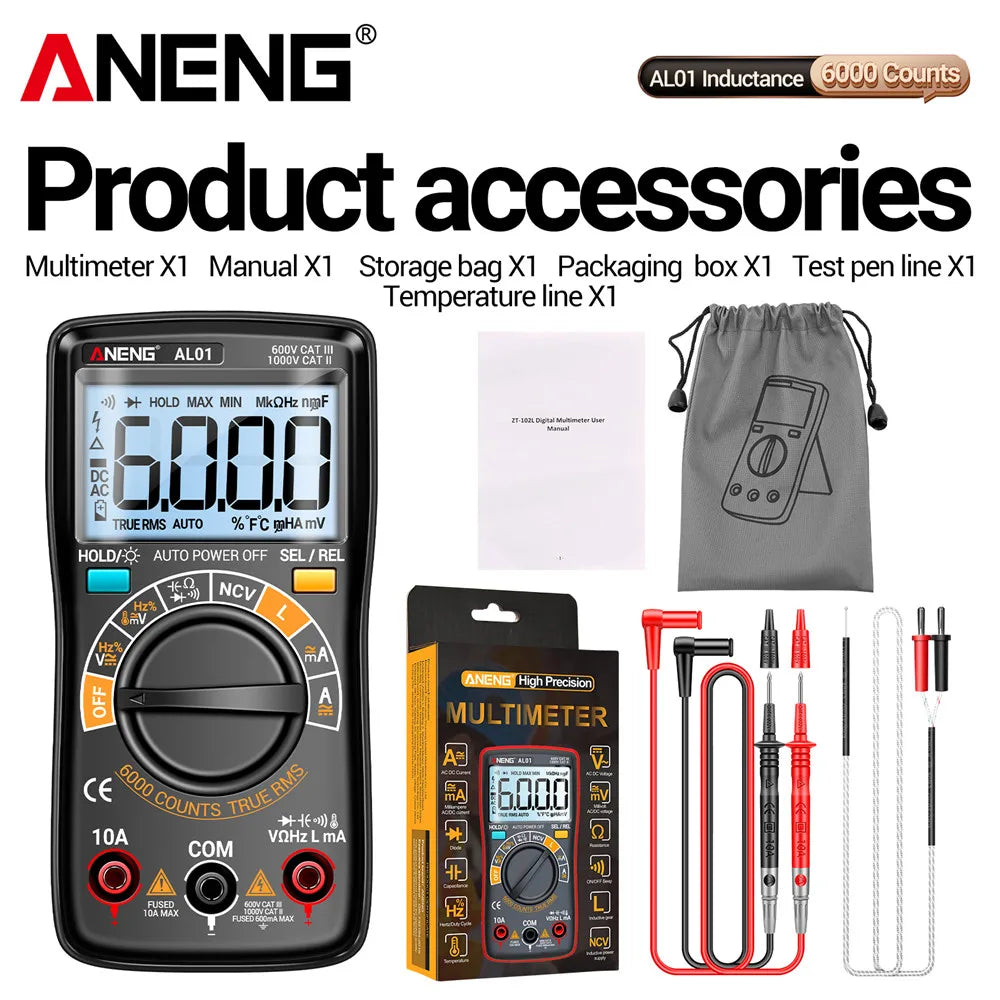

Packaging content: Without Battery
