SPECIFICATIONS

Application 1: Led Light Lamp Bulb Switch, Home Security Alarm System

Application 2: Water heaters, Fan, Fish tank, Diy Home electrical equipment and so on

Application location: Family, Home, Factory, Office, Supermarkets and so on

Brand Name: tedeligo

Certification: CCC,ce,ROHS,RoHS,CE,CCC

Choice: yes

Current: 10A

Features: 433 Mhz Wireless Remote Control Switch

Is Smart Device: No

Item Type: SWITCHES

Matching Mode: Intelligent Learning code 1527

Material: Plastic

Max Current: 10Amp

Model Number: 2201D light switches 220v

Modulation Mod: ASK

Origin: Mainland China

RF frequency: 433MHz

Receiving Sensitivity: 97dbm

Remote distance: up to 50m (theoretical distance)

Shell: Yes

Switch Type: Push Button Switch

Warranty: 1 Year

Working Voltage: AC 90V-250V

Working temperature: -30 ~ +80

semi_Choice: yes

Wireless Light Switches RF 433 Mhz  Remote on Off Switch Controller Relay Ac220v 10A Smart Home Control Ceiling Lamp LED Fan

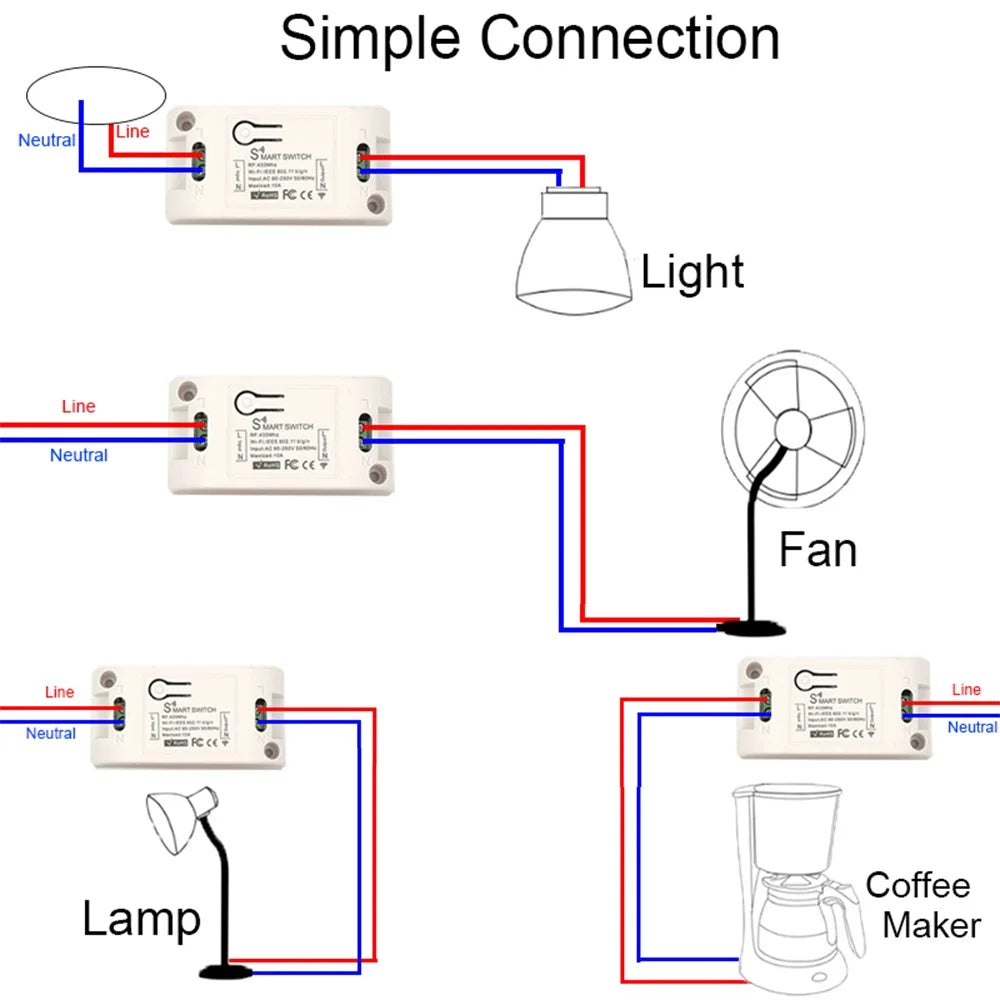

Simple connection

433MHZ wireless switchsignals

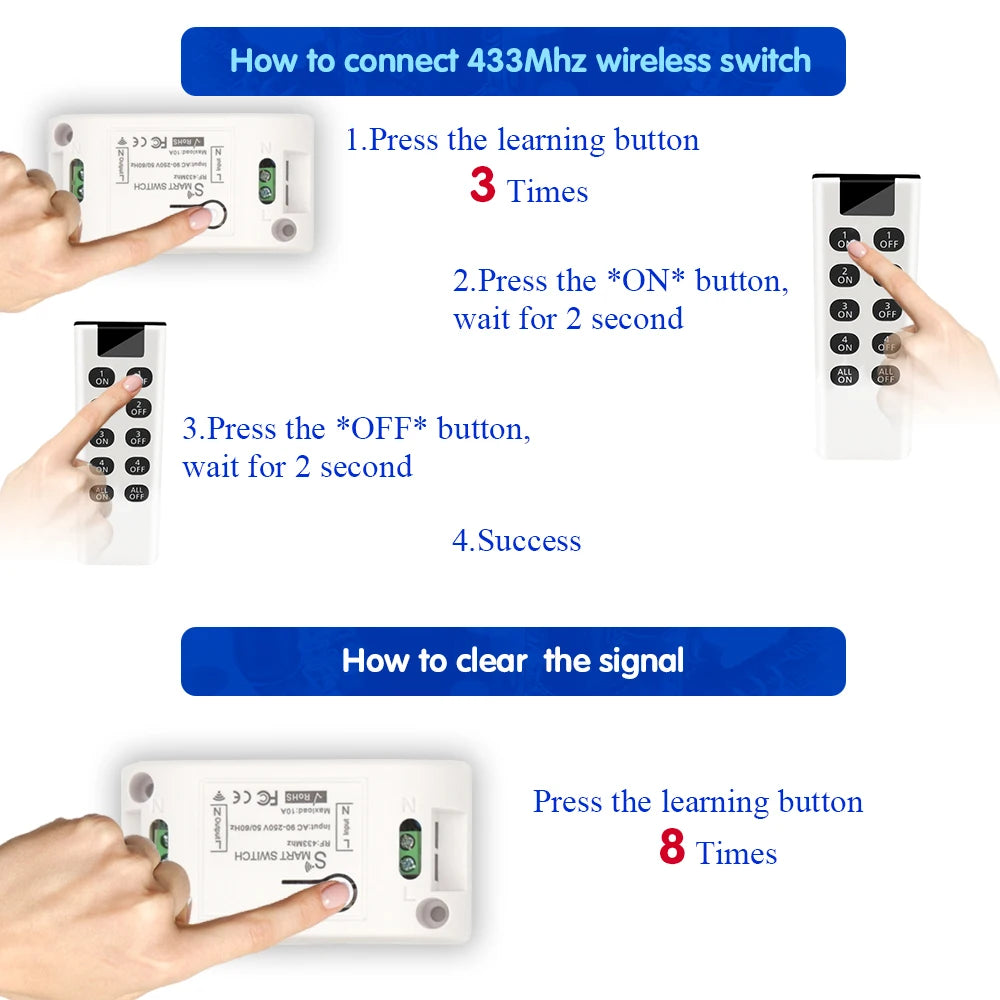

How to get the signals
Step 1: Press the learning button(on the Receiver) 3 times. Wait for 3 seconds;
Step 2: Press "ON" button on the remote control. Wait for 3 seconds. Succeed.
Step 3: Press "OFF" button on the remote control. Wait for 3 seconds. Succeed.

How to clear the signals
Only one step :Press the learning button(on the Receiver) 8 times. Wait for 3 seconds;

Features:
1.One remote control controls multiple receivers, and multiple remote controls control one receiver at the same time.
2.Place anywhere:Can be pasted on the wall, or on the glass
3.Energy saving
4.safety protection devices

Product Application Area
Products can be used in homes, farms, factories, offices, laboratories, supermarkets and so on
Remote control Electric curtain \ Water pump \ Fan \ Lamp \ LED light \ bulb \ ventilation device \ Signal transmission
Remote control humidifiers, microwaves, coffee machines
Remote control Taking Care for the elderly, children

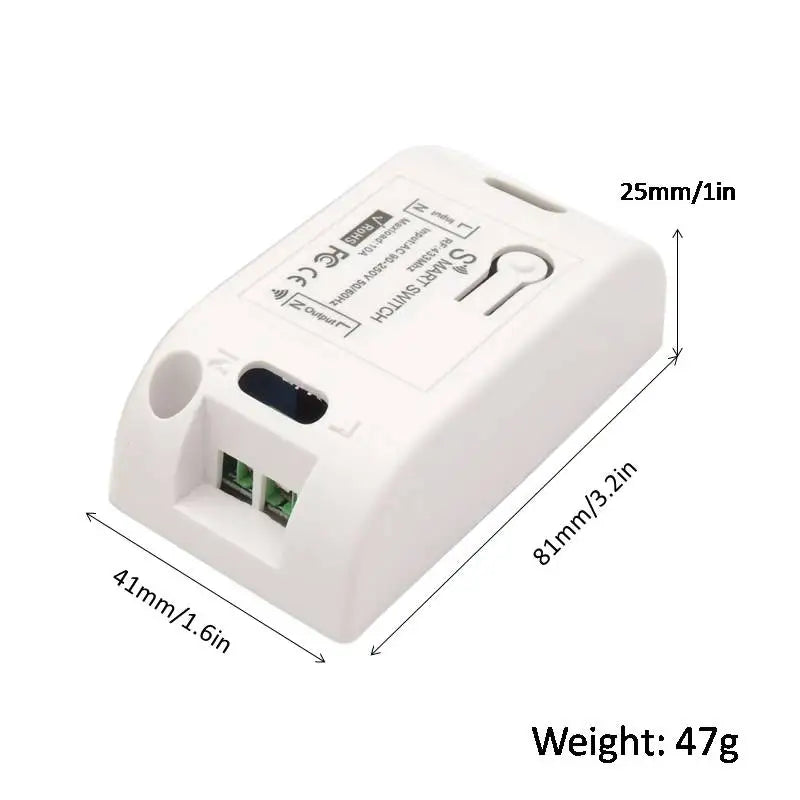

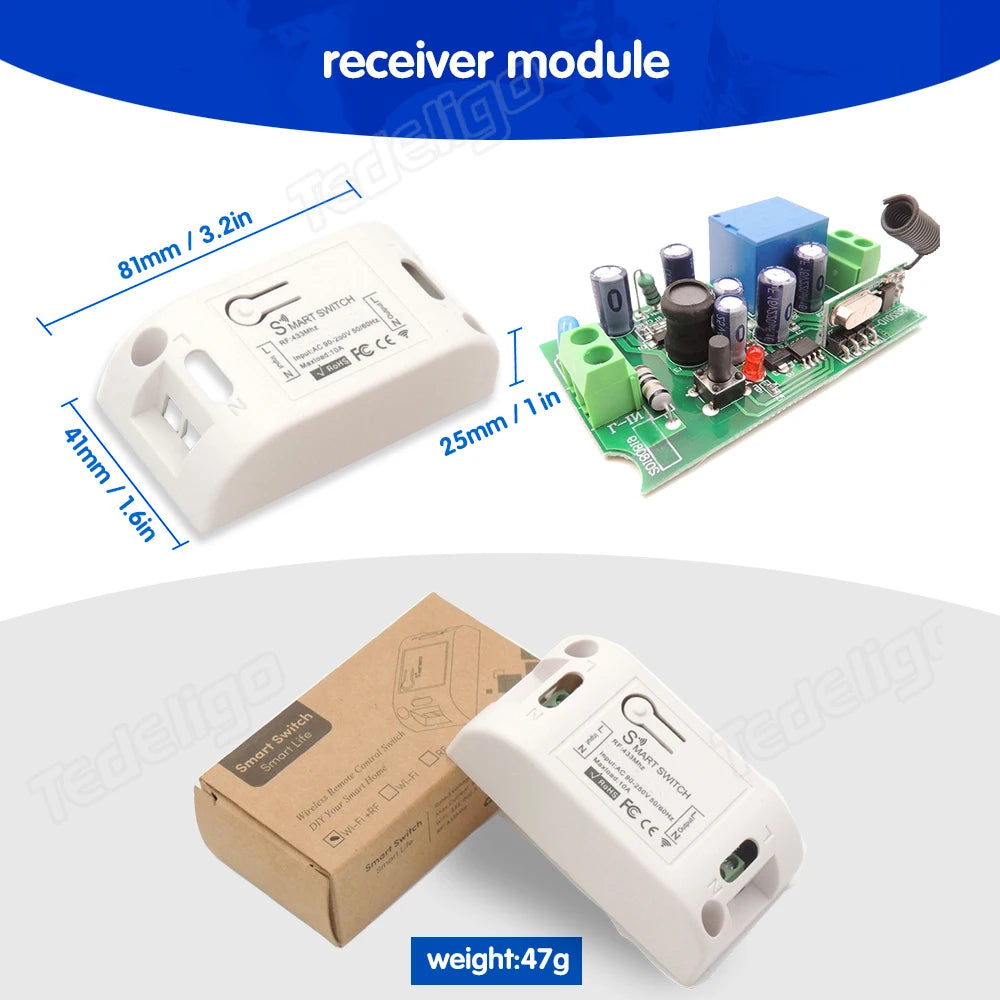

Relay Receiver Board Parameter
--Product Type: Single Channel Remote Control Switch
--Encoding Type: Intelligent Learning Code 1527
--RF Working Mode: Superheterodyne Reception
--Modulation Mode:ASK
--RF Frequency: 433MHz
--Input Voltage: AC 90V~250V
--Max current:  10 Amp
--Quiescent Current: 5mA
--Receiving Sensitivity: >97dbm
--Remote distance:up to 50m (theoretical distance)
--Wired Connection Way: Fixed Wiring Pillar
--Output Terminal: L /N
--L :  Living line
--N : Neutral line
--Color:  White (Outside Shell)

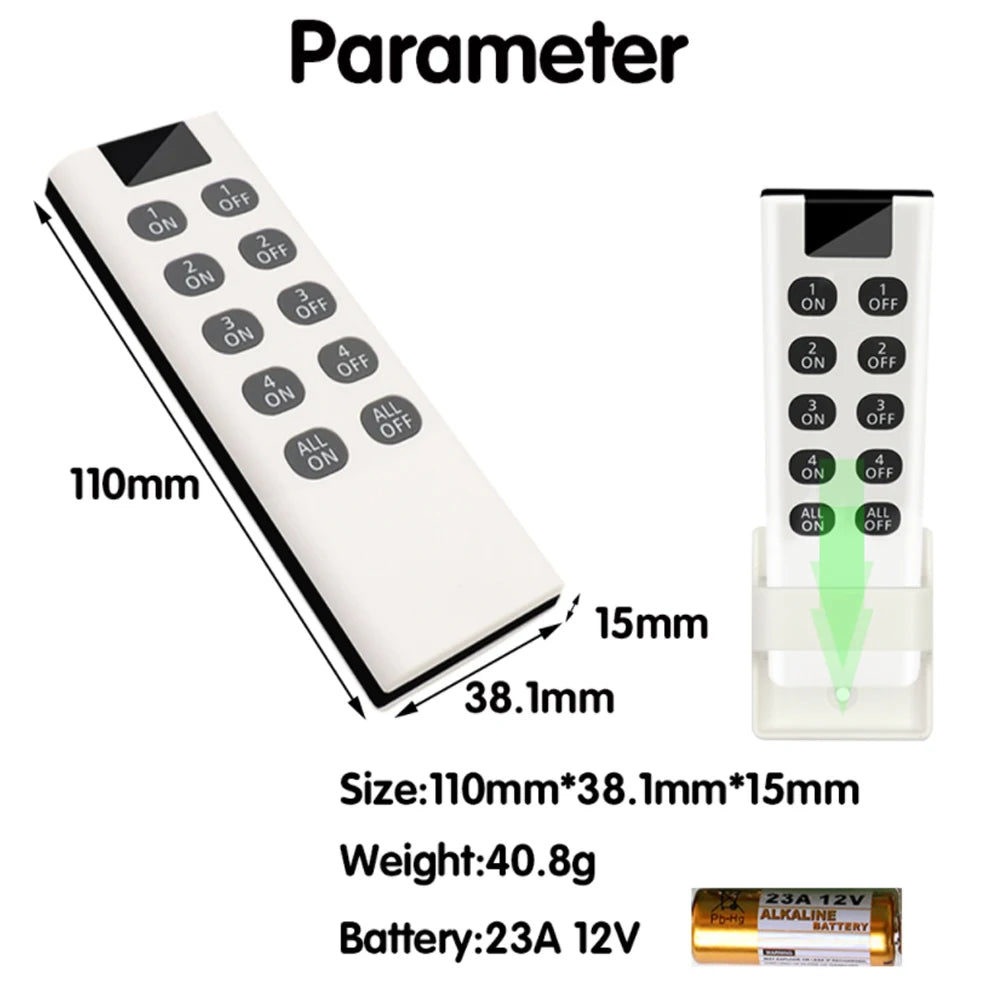

• RF frequency : 433MHz

• Remote distance:up to 50m (theoretical distance)

• Material : Plastic

• Support encoding : 1527 Leaning code

• Battery  : 23A12V( include Battery)

• Weight  : 30g

• Size  :  2.36*1.18in

•
