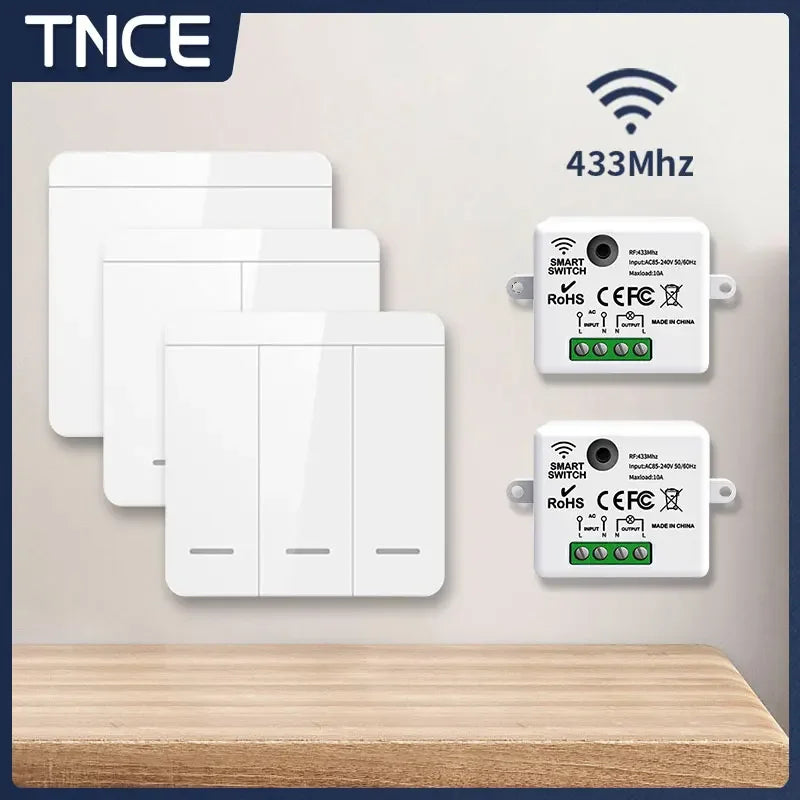

TNCE RF433MHz Mini Wireless Remote Control Light Switch 1/2/3 Gang 86 Wall Transmitter Switch Button Wall Panel Switch
SPECIFICATIONS
Brand Name: TNCE
Certification: CE,ce,ROHS
Choice: yes
Current: 10A
High-concerned chemical: None
Is Smart Device: No
Item Type: SWITCHES
Matching method: Click the RF433 receiver twice, and then click corresponding button.
Material: Plastic
Model Number: RF433MHz
Number of pairs: Each wireless button can pair 15 RF433 receivers.
Origin: Mainland China
Remote Distance: 50m
Reset method: 8 consecutive clicks on RF433 receiver
Switch Type: Push Button Switch
Wireless Switch: Only compatible with RF433
Working Voltage: AC 85V-265V
RF433MHz Mini Wireless Remote Control Light Switch 1/2/3 Gang 86 Wall Transmitter Switch Button Wall Panel Switch By TNCE
Flexible pairing mode
Mode 1, you can pair an RF433 receiver with multiple RF433 transmitters.

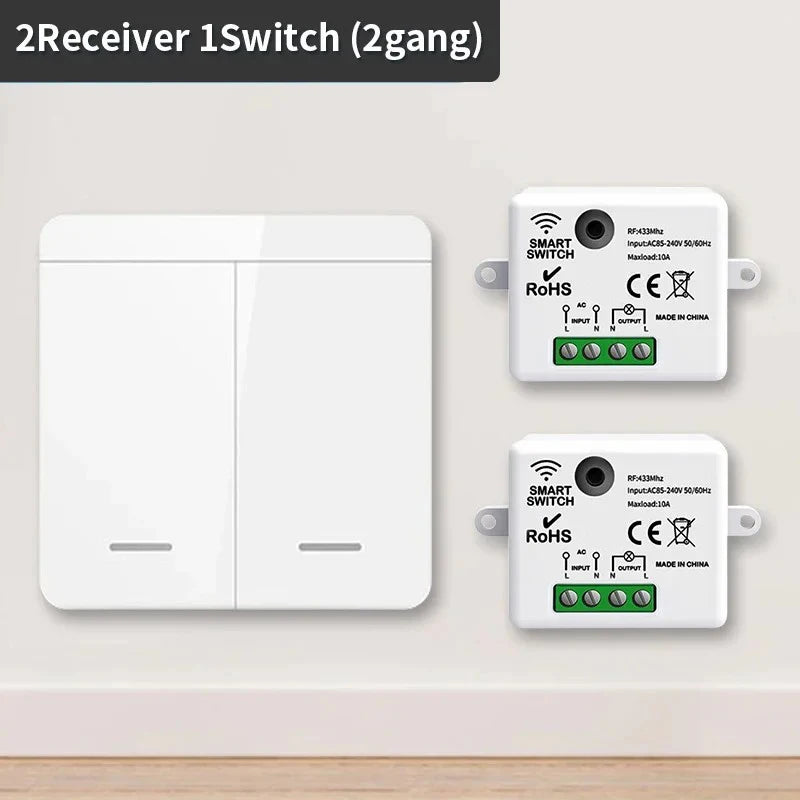

Mode 2, you can pair multiple RF433 receivers with one RF433 transmitter.

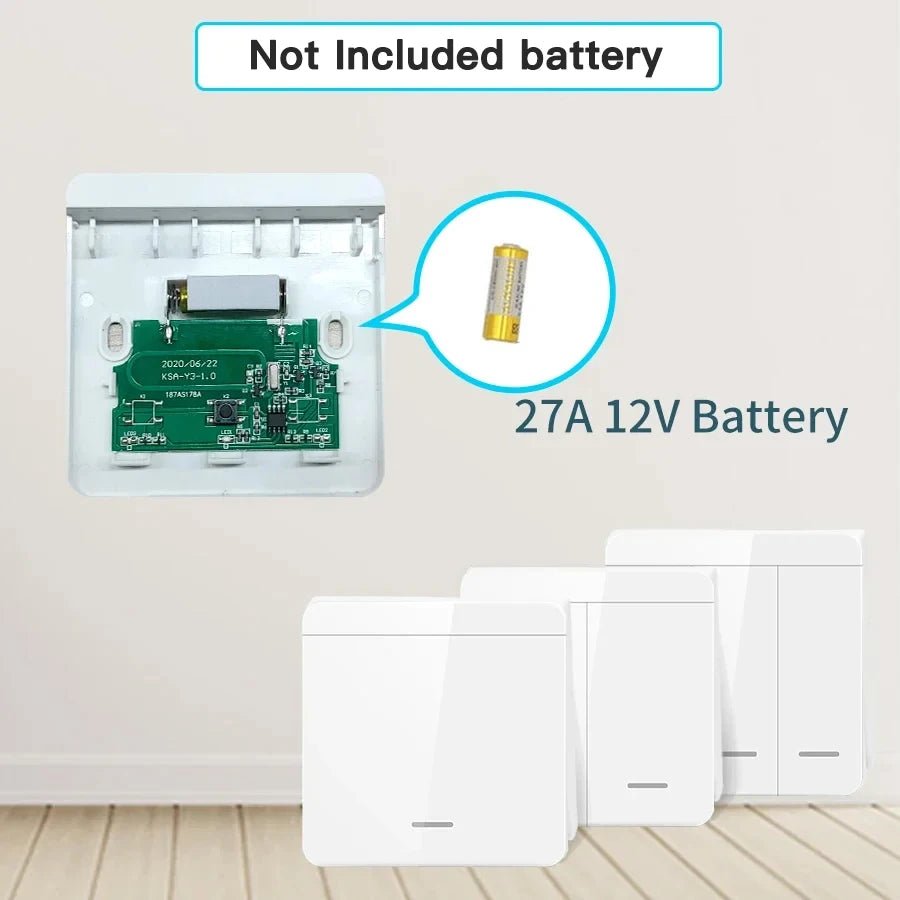

NOTE: 1/2/3gang switch requires a 27A12V battery. Battery not include in package.

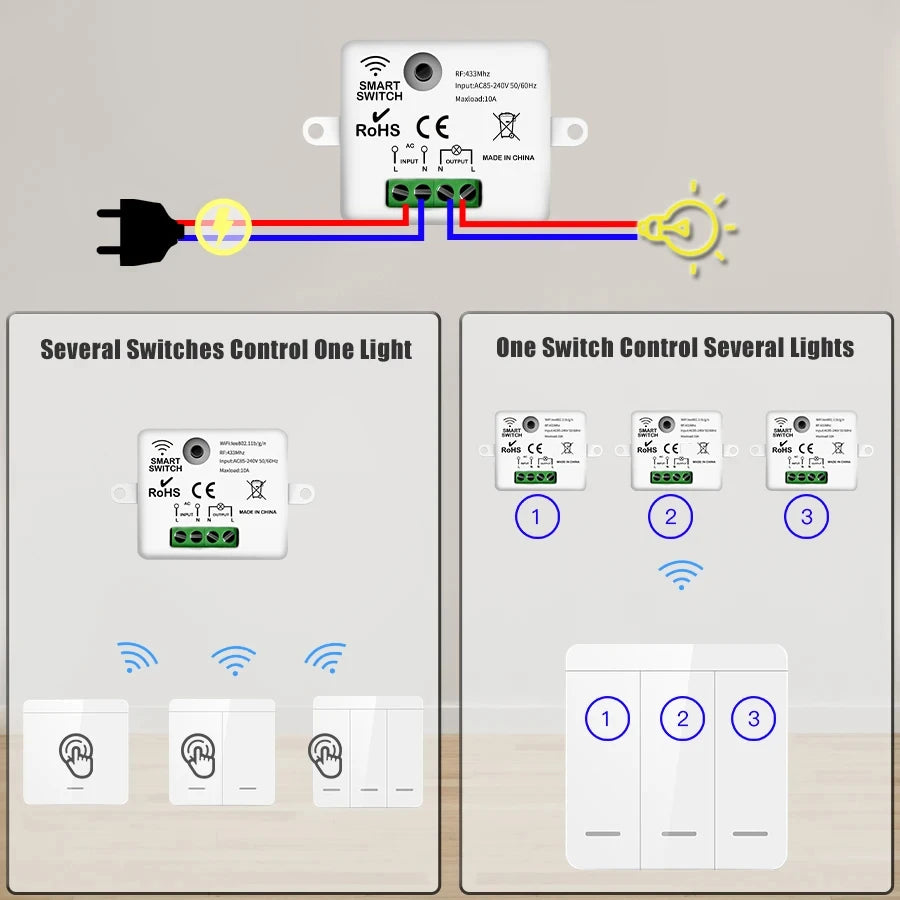

Wiring Method
Multi-channel control

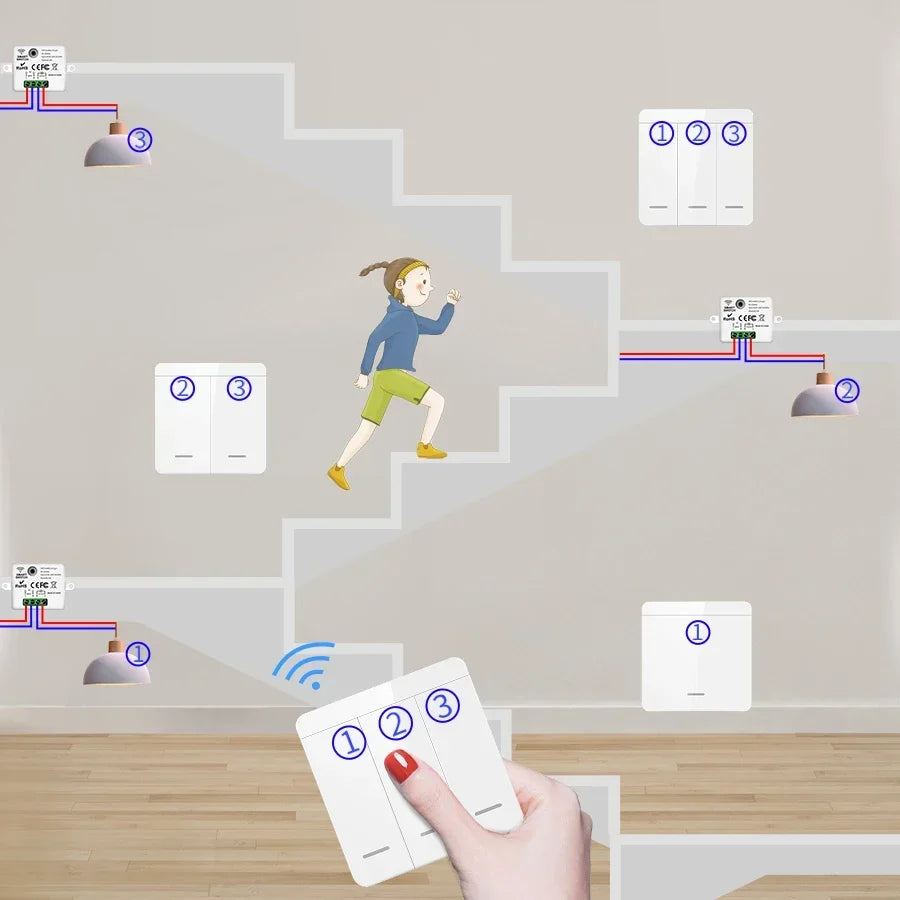

One switch can control the multiple RF433 receivers at the same time.
433mhz Strong Signal
Note: One RF433 receiver can only store 15 buttons
If more than 15 sets of buttons are saved, the frist set of data is automatically overwritten.
How to get the signal
Step 1: Press the learning button(on the Receiver) twice. Wait for 3 seconds
Step 2: Press one button on the remote control. Wait for 3 seconds. Succeed.
How to clear the signal
Only one step :Press the learning button(on the Receiver) 8 times. Wait for 3 seconds
