Miboxer B0 B1 B2 B3 B4 B8 2.4GHZ LED Touch Panel Remote 4-Zone/8-Zone Dimming Controller for Single Color/RGB+CCT/RGBW/ LED Lamp
SPECIFICATIONS
Applicable Lights: Single Color/RGB+CCT/RGBW/ LED Lamp

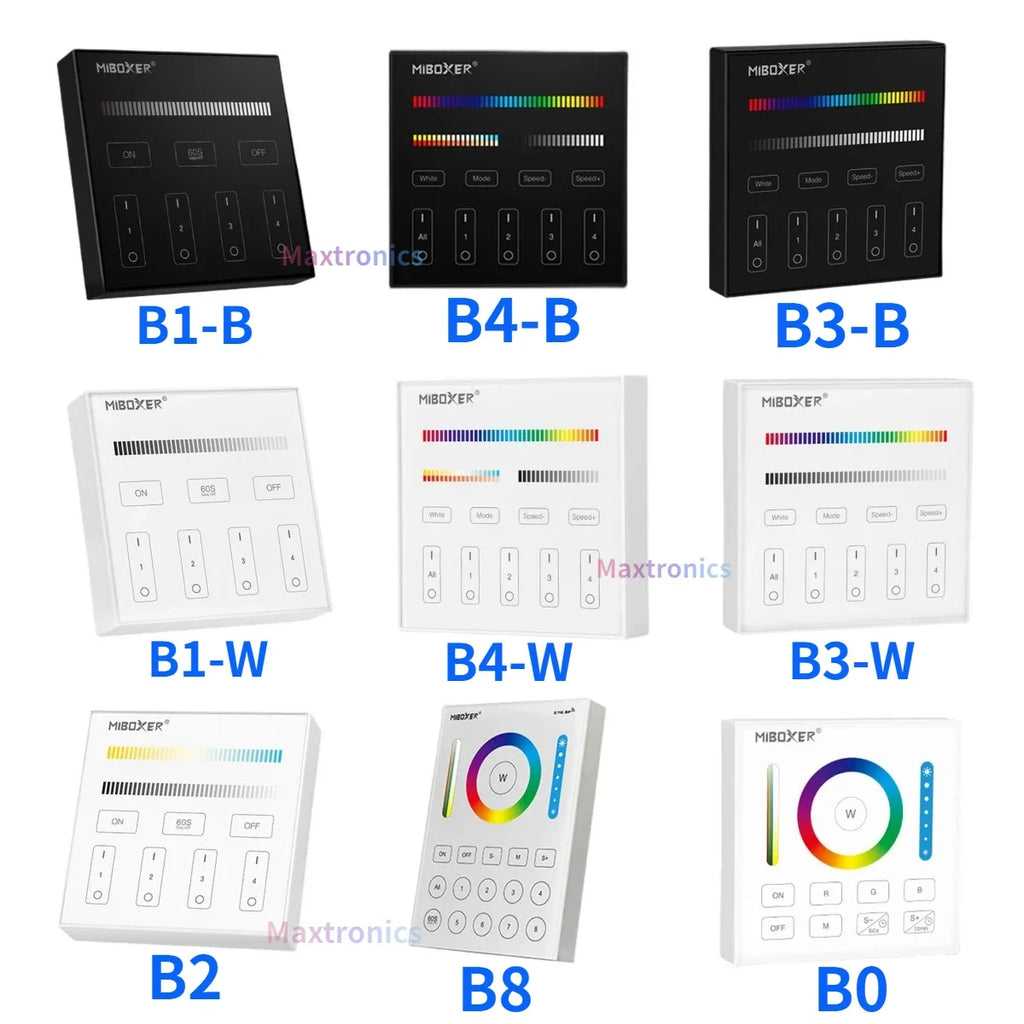

B0: Panel Remote (RGB+CCT)
B1: 4-Zone Panel Remote (Brightness)
B1-B: 4-Zone Panel Remote (Brightness)
B2: 4-Zone Panel Remote (Color Temperature)
B3: 4-Zone Panel Remote (RGBW)
B3-B: 4-Zone Panel Remote (RGBW)
B4: 4-Zone Panel Remote (RGB+CCT)
B4-B: 4-Zone Panel Remote (RGB+CCT)
B8: 8-Zone Smart Panel Remote Controller
Brand Name: SAGE LU MEI
Certification: CCC,ce,ROHS
Connection Mode: Wireless 2.4G RF
Controled Method: 2.4G RF Touch Screen Panel Control
Features: 2.4G RF Touch
High-concerned chemical: None
Item Type: RGB controler
Material: ABS and Glass
Max. Load Power: 100W
Model Number: B0/B1/B2/B3/B4/B8
Origin: Mainland China
Power Source: DC
Remote Distance: 30M
Voltage: 5-24V
Warranty: 1
Miboxer 2.4GHZ LED Touch Panel Remote B0 B1 B2 B3 B4 B8 4-Zone/8-Zone Dimming Controller for Single Color/RGB+CCT/RGBW/ LED Lamp
B0 introduce:
Product Name: Panel Remote (RGB+CCT)
Model No.: B0
Voltage: 3V(2*AAA Battery)
Transmission Frequency: 2400-2483.5MHz
Modulation Method: GFSK
Transmitting Power: 6dBm
Standby Power: 20uA
Control Distance: 30m
Working Temperature: -10 -40℃
Size: 86*86*16mm

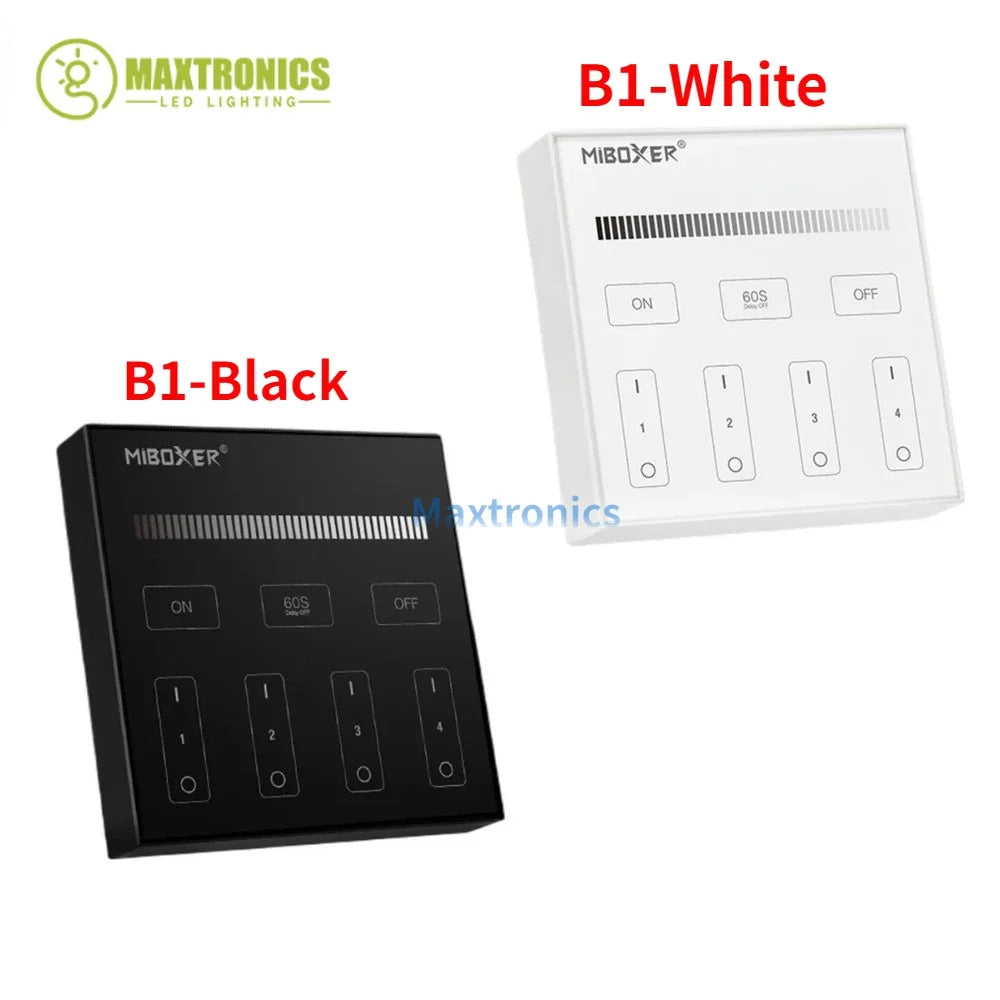

B1 introduce:
Product Name: 4-Zone Panel Remote (Brightness)
Model No.: B1
Voltage: 3V(2*AAA Battery)
Transmission Frequency: 2400-2483.5MHz
Modulation Method: GFSK
Transmitting Power: 6dBm
Control Distance: 30m
Standby Power: 20uA
Working Temperature: -10 -40℃
Panel Size: 86*86*16mm
B2 introduce:
Product Name: 4-Zone Panel Remote (Color Temperature)
Model No.: B2
Voltage: 3V(2*AAA Battery)
Transmission Frequency: 2400-2483.5MHz
Modulation Method: GFSK
Transmitting Power: 6dBm
Control Distance: 30m
Standby Power: 20uA
Working Temperature: -10 -40℃
Panel Size: 86*86*16mm

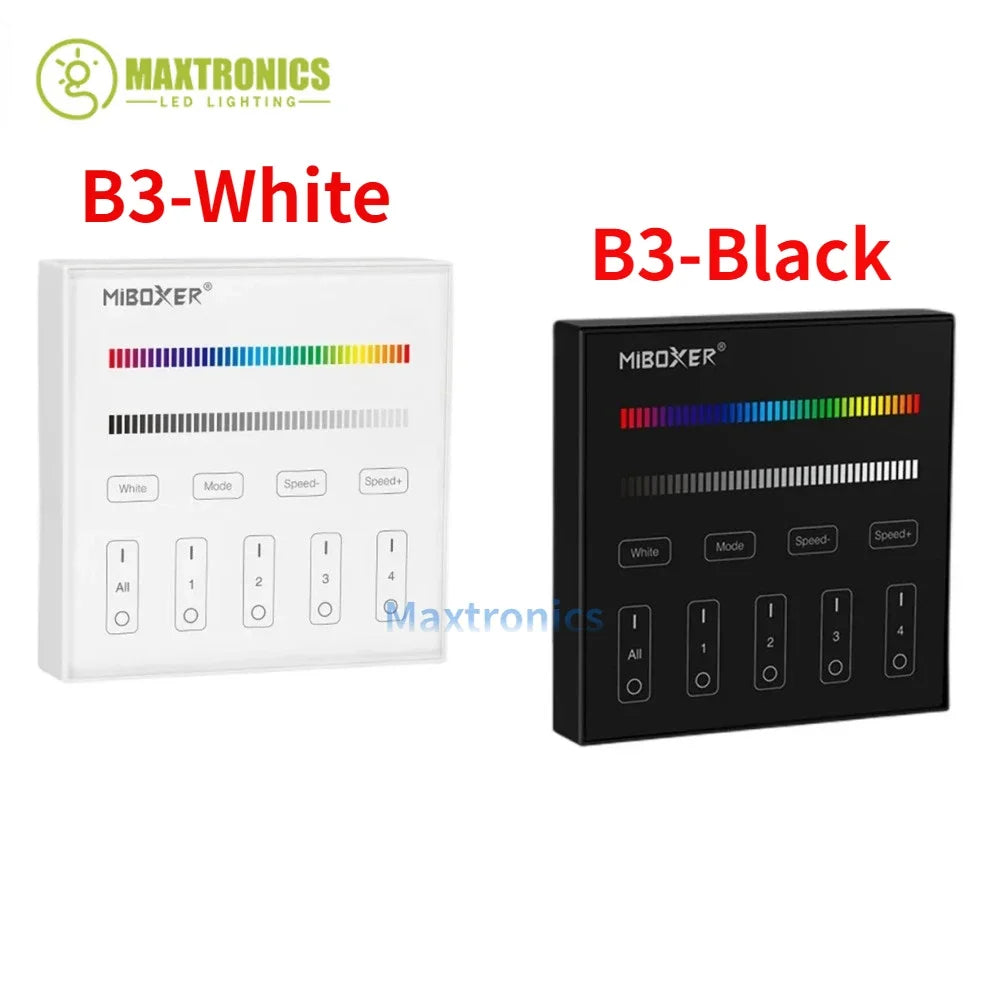

B3 introduce:
Product Name: 4-Zone Panel Remote (RGBW)
Model No.: B3
Voltage: 3V(2*AAA Battery)
Transmission Frequency: 2400-2483.5MHz
Modulation Method: GFSK
Transmitting Power: 6dBm
Control Distance: 30m
Standby Power: 20uA
Working Temperature: -10 -40℃
Panel Size: 86*86*16mm

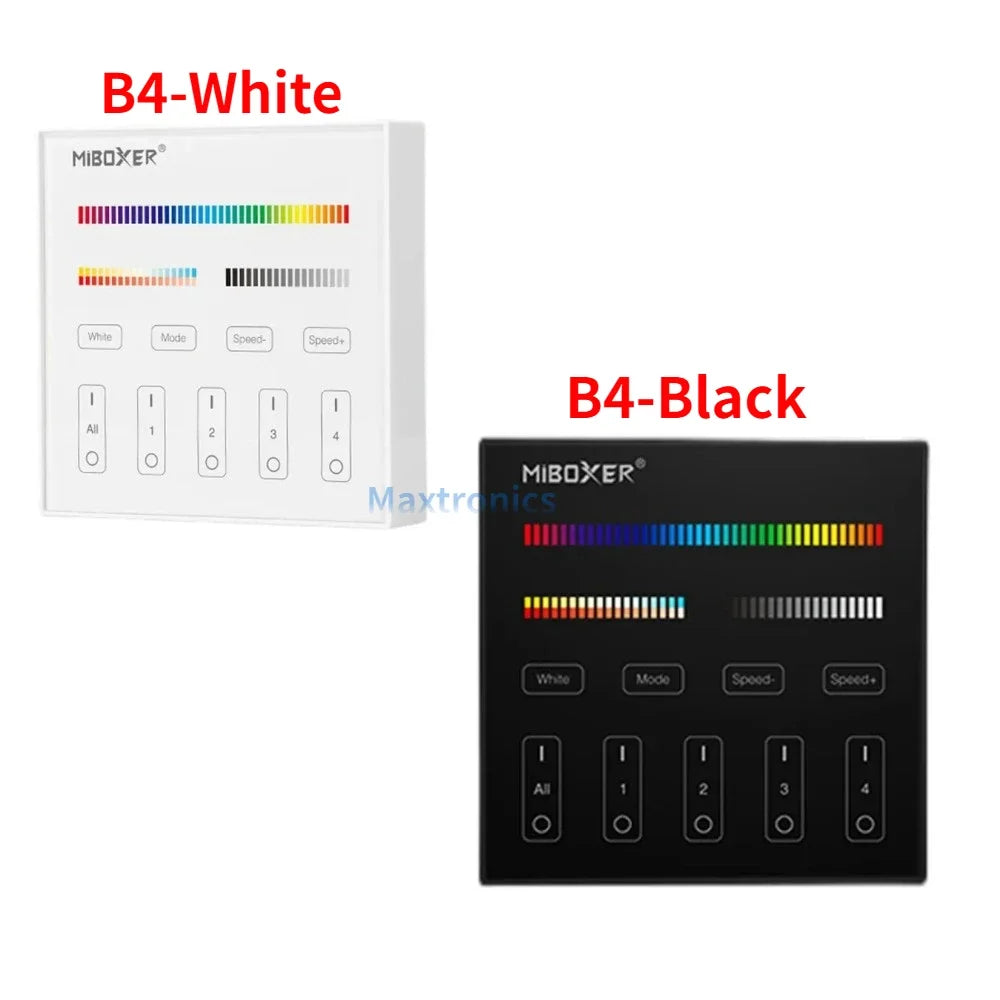

B4 introduce:
Product Name: 4-Zone Panel Remote (RGB+CCT)
Model No.: B4
Voltage: 3V(2*AAA Battery)
Transmission Frequency: 2400-2483.5MHz
Modulation Method: GFSK
Transmitting Power: 6dBm
Control Distance: 30m
Standby Power: 20uA
Working Temperature: -10 -40℃
Panel Size: 86*86*16mm
B8 introduce:
Product Name: 8-Zone Smart Panel Remote Controller
Model No.: B8
Working Temperature: -20 -60℃
Voltage: 3V(2*AAA Battery) / DC3.3V
Transmission Frequency: 2400-2483.5MHz
Modulation Method: GFSK
Transmitting Power: 6dBm
Control Distance: 30m
Standby Power: 30uA
Panel Size: 106*146*20mm
B1-B introduce:
Product Name: 4-Zone Panel Remote (Brightness)
Model No.: B1-B
Voltage: 3V(2*AAA Battery)
Transmission Frequency: 2400-2483.5MHz
Modulation Method: GFSK
Transmitting Power: 6dBm
Control Distance: 30m
Standby Power: 20uA
Working Temperature: -10 -40℃
Panel Size: 86*86*16mm
B3-B introduce:
Product Name: 4-Zone Panel Remote (RGBW)
Model No.: B3-b
Voltage: 3V(2*AAA Battery)
Transmission Frequency: 2400-2483.5MHz
Modulation Method: GFSK
Transmitting Power: 6dBm
Control Distance: 30m
Standby Power: 20uA
Working Temperature: -10 -40℃
Panel Size: 86*86*16mm

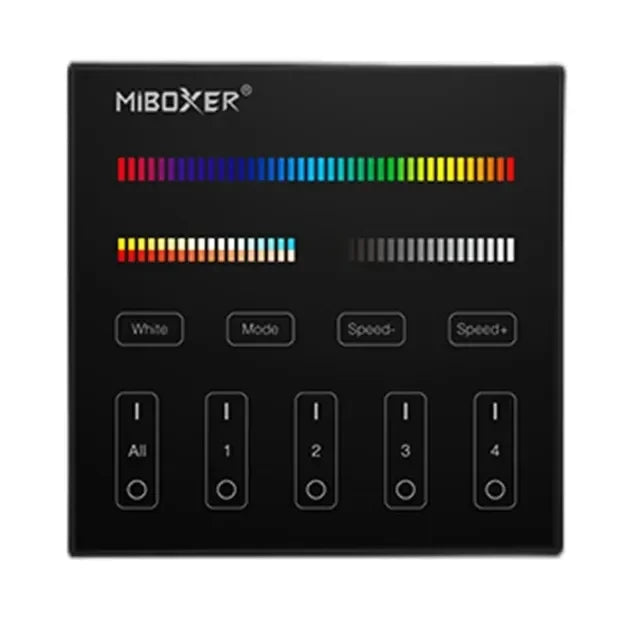

B4-B introduce:
Product Name: 4-Zone Panel Remote (RGB+CCT)
Model No.: B4-B
Voltage: 3V(2*AAA Battery)
Transmission Frequency: 2400-2483.5MHz
Modulation Method: GFSK
Transmitting Power: 6dBm
Control Distance: 30m
Standby Power: 20uA
Working Temperature: -10 -40℃
Panel Size: 86*86*16mm
1: This panel controller is only suitable for Miboxer/Milight series lighting products or light strips.
2: When controlling the light strip, it needs to be used with the Miboxer/Milight controller, and needs to be purchased separately.
Product Introduction:

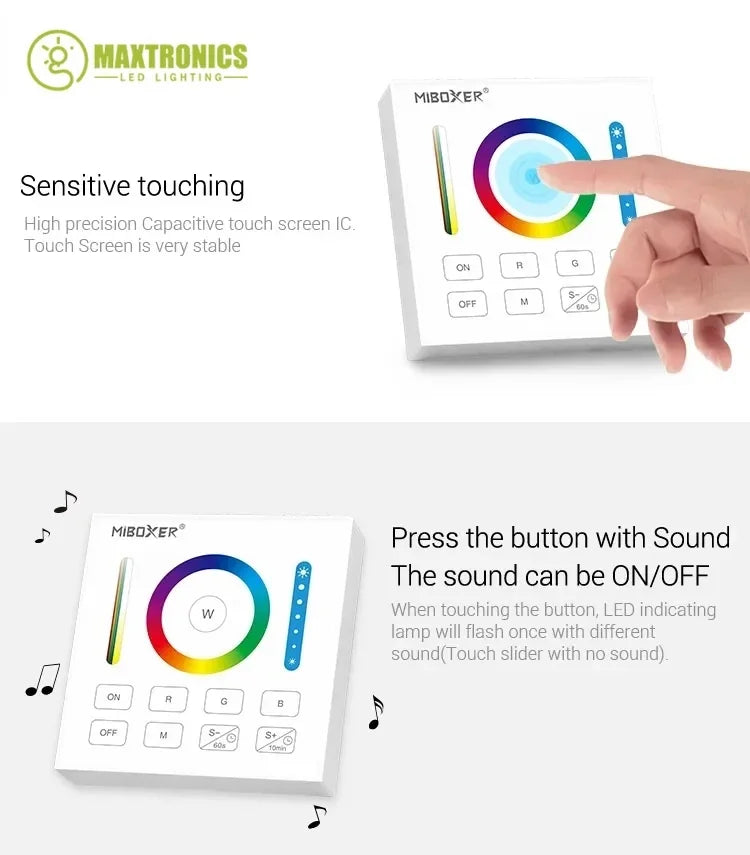

B0:

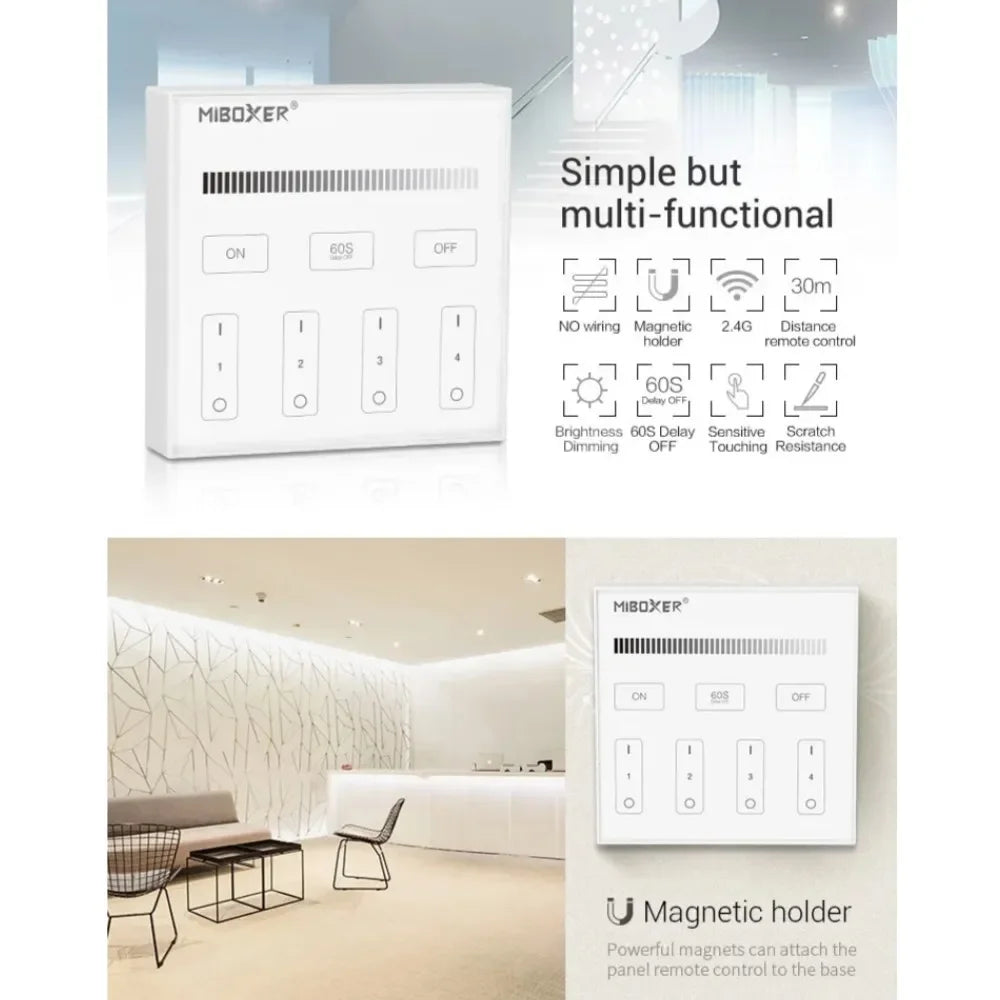

B1:
B2:
B3:
B4:
B8:
B1-B:
B3-B:
B4-B:
