SPECIFICATIONS

Advantage: Silent (no noise)

Application: LED Strip, LED light

Brand Name: NIUGUY

Certification: ce,ROHS,UL

Features: Super thin, small size

Frequency: 50/60Hz

High-concerned chemical: None

Input Signal: AC 100-265V

Input Voltage: AC 110-250V(60~300W), 170~250V(400~500W))

Item Type: Lighting Transformers

Material: Aluminum alloy

Model Number: CB

Origin: Mainland China

Output Current: 0-50A

Output Power: 36-500W

Output Signal: DC12V or 24V

Output Voltage: 12V or 24V

Product Name: Ultra Thin Power Supply

Warranty: 2 years

Weight: 0.32

(Note: No-load testing is prohibited to prevent short circuit. The no-load voltage is a virtual value and the data is inaccurate. Please connect the lamp beads for testing. It is only suitable for lighting fixtures)

•Not applicable statement, please do not use it for: machinery/automation equipment/DIY modification of small household appliances and other projects.

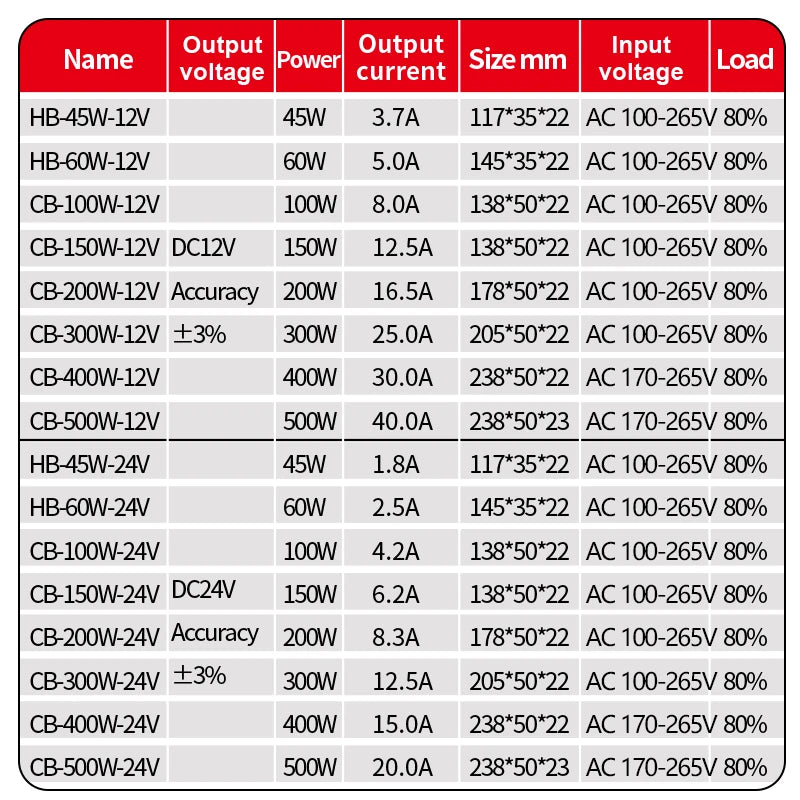

parameter

Product name: LED driver/power supply/transformer

Input voltage: AC 110V-250V (60~300W), 170V-250V (400~500W) (select according to local city voltage)

Output voltage: DC 12V or 24V (12V±3%~5% error is normal, 24V±3% error is normal)

Power: 45W - 500W

Shell material: aluminum alloy

Working temperature: 0~60C

Storage temperature: -20~60C

Environmental humidity: 0~95% without condensation

Safety Compliance: UL/CE/Rohs

Efficiency: 80% (80% of rated load recommended). Overloading will cause heat and noise.

Main features

1. Ultra-thin, small size design.

2.2.Silence.

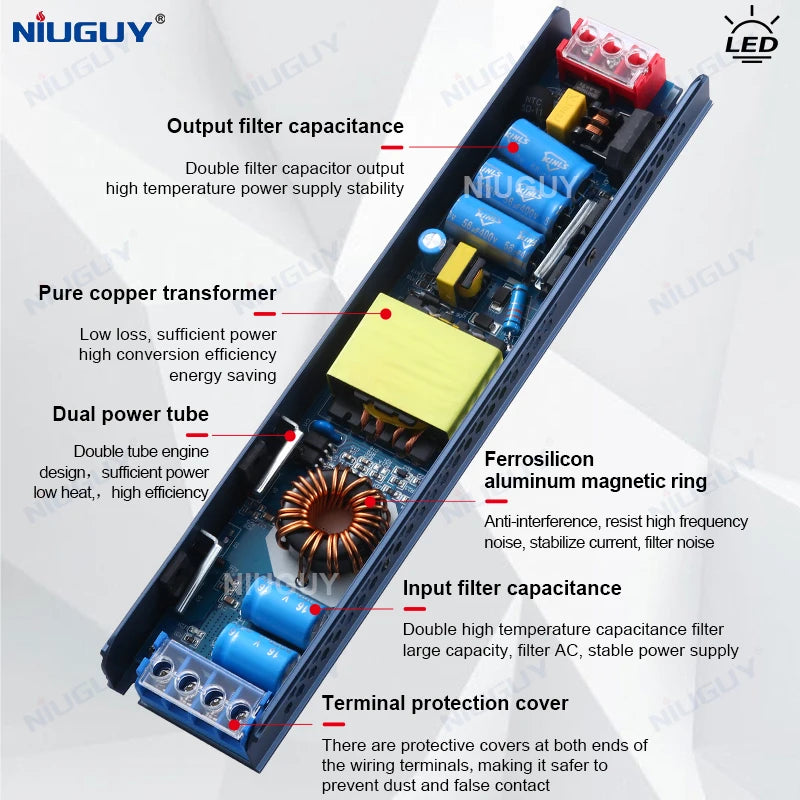

3.3. Using high thermal conductivity aluminum shell, the heat dissipation efficiency is extremely high.

4. High quality, 2 year warranty. The package contains 1 12V/24V LED driver power supply (no other accessories).

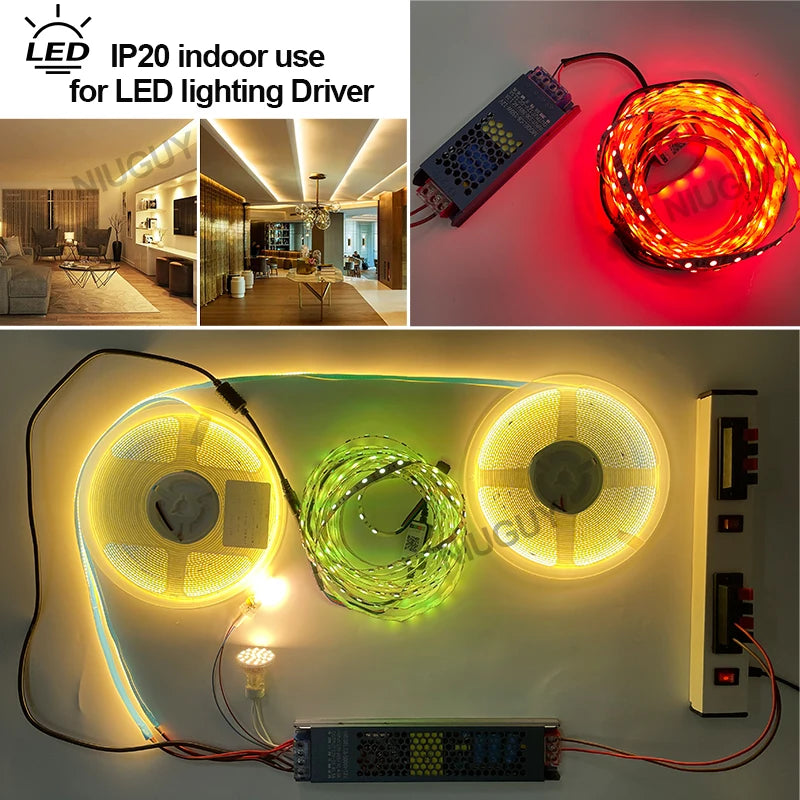

Recommended light strip length [Take 1M/12 watt as an example, 36W with 2m light strip, 45W with 3m light strip, 60W with 4m light strip, 100W with 6m light strip, 150W with 10m light strip, 200W with 13m light strip, 300W Equipped with 20m light strip, 400W is equipped with a 25m light strip, 500W is equipped with a 30m light strip, and 600W is equipped with a 38m light strip [strip]. No matter whether the power supply is large or small, make sure it is 12V or 24V, the two are not compatible.
