2.2kw/4kw /5.5kw/7.5kw/11kw 220v single phase input 380v 3 phase output AC Frequency Inverter AC drives /frequency converter Nf by MVEnergo
  • 2.2kw/4kw /5.5kw/7.5kw/11kw 220v single phase input 380v 3 phase output AC Frequency Inverter AC drives /frequency converter Nf by MVEnergo
  • 2.2kw/4kw /5.5kw/7.5kw/11kw 220v single phase input 380v 3 phase output AC Frequency Inverter AC drives /frequency converter Nf by MVEnergo
  • 2.2kw/4kw /5.5kw/7.5kw/11kw 220v single phase input 380v 3 phase output AC Frequency Inverter AC drives /frequency converter Nf by MVEnergo
  • 2.2kw/4kw /5.5kw/7.5kw/11kw 220v single phase input 380v 3 phase output AC Frequency Inverter AC drives /frequency converter Nf by MVEnergo
  • 2.2kw/4kw /5.5kw/7.5kw/11kw 220v single phase input 380v 3 phase output AC Frequency Inverter AC drives /frequency converter Nf by MVEnergo
  • 2.2kw/4kw /5.5kw/7.5kw/11kw 220v single phase input 380v 3 phase output AC Frequency Inverter AC drives /frequency converter Nf by MVEnergo
  • 2.2kw/4kw /5.5kw/7.5kw/11kw 220v single phase input 380v 3 phase output AC Frequency Inverter AC drives /frequency converter Nf by MVEnergo
  • 2.2kw/4kw /5.5kw/7.5kw/11kw 220v single phase input 380v 3 phase output AC Frequency Inverter AC drives /frequency converter Nf by MVEnergo
  • 2.2kw/4kw /5.5kw/7.5kw/11kw 220v single phase input 380v 3 phase output AC Frequency Inverter AC drives /frequency converter Nf by MVEnergo
  • 2.2kw/4kw /5.5kw/7.5kw/11kw 220v single phase input 380v 3 phase output AC Frequency Inverter AC drives /frequency converter Nf by MVEnergo
  • 2.2kw/4kw /5.5kw/7.5kw/11kw 220v single phase input 380v 3 phase output AC Frequency Inverter AC drives /frequency converter Nf by MVEnergo
  • 2.2kw/4kw /5.5kw/7.5kw/11kw 220v single phase input 380v 3 phase output AC Frequency Inverter AC drives /frequency converter Nf by MVEnergo
2.2kw/4kw /5.5kw/7.5kw/11kw 220v single phase input 380v 3 phase output AC Frequency Inverter AC drives /frequency converter Nf

2.2kw/4kw /5.5kw/7.5kw/11kw 220v single phase input 380v 3 phase output AC Frequency Inverter AC drives /frequency converter Nf

€138,04 €155,19
Color
Ships From

SPECIFICATIONS

Applications: Universal

Brand Name: NFLIXIN

Certification: CE

Control method: V/F

High-concerned chemical: None

Input Voltage: single phase 220V (Range 15% Above or Less)

Level of portection: Ip20

Model Number: 1.5kw/2.2kw 220vto380v inverter

Origin: Mainland China

Output Current: 3.7A/5A/8.5A/13A

Output Frequency: 0-400HZ

Output Power: 1 - 200KW

Output Type: triple

Power: 1.5kw/2.2kw/1.5kw 220Vto380v inerter

Size: 126mm*170mm*160mm

Type: DC/AC Inverters

Weight: 1.3kg

is_customized: Yes

output Voltage: 3 phase 380V








1. Free warranty only applies to the AC drive itself.

2. Our company will provide 12-month warranty (starting from the leave-factory date

as indicated on the barcode) for the failure or damage under normal use conditions.

If the equipment has been used for over 12 months, reasonable repair expenses will

be charged.

3. Reasonable repair expenses will be charged for the damages due to the following

causes:

• Improper operation without following the instructions

•Fire,Flood,Abonrmal voltage,Thunderstroke

• Using the AC drive for non-recommended function

4. The maintenance fee is charged according to power uniform standard. If there is

an agreement, the agreement prevails.


1.If you have any questions about the product, please contact us at WP: 86 17688978149



2.The output voltage of this product is a square wave, and ordinary multimeters cannot measure the output end of this product. When measuring, use a Fluke multimeter or analog multimeter

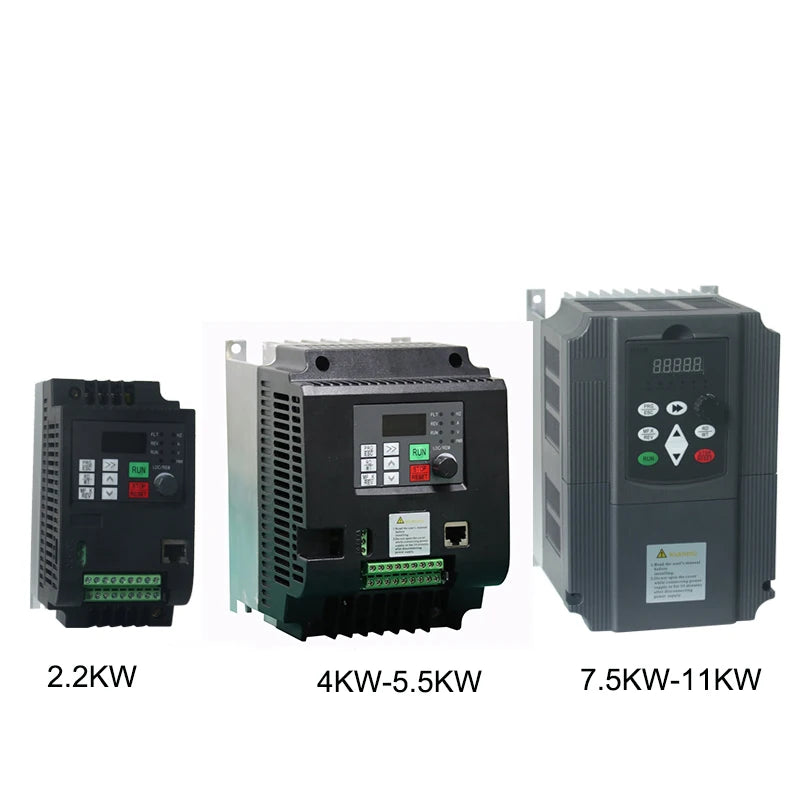

3.about weight 2.2KW 1.2KG , 4KW-5.5kw 2KG ,7.5KW 3KG ,11KW 3.5KG


4.This product cannot be connected to a braking resistor for fast braking

380v mixers, car lifts, air compressors use 220v electricity



Specification:

Product name: General 220V to 380V AC motor frequency inverter VFD

Rated power:2.2KW/4KW/5.5KW/7.5KW/11KW

Output frequency:0-600HZ

Input voltage:1 phase 220V

Output voltage:3 phase 380v

Adapter motor: no more than 5.5kw 7.5HP AC motor


We have sophisticated engineers, scientific producing workmanship and management team with rigorous quality control systems , frequency inverter are equipped with advanced features as below:
01 V/F control, vector control  and output torque control;
02Built-in RS-485 communication interface
03Compact size, easy to install;
04With a speed potentiometer and external panel;
05Built-in synchronous control and proportional synchronization control;
0616 speed control modest,Can run automatically;
07Can choice multiple running commands or frequency channel;
08Can be achieve Part or all of the keys locked(Analog potentiometer unlock);
09Relay normally open or closed and two high configuration output have 100 kinds of ways optional;
106 digital opto-isolated inputs, 100 kinds of ways optional;
113 analog input, 1 analog output channel;
12Having textile pendulum frequency function, It can be widely applications for many kinds of textile
equipment;
13Built-in user timer / counter;
14Built-in PID regulation function to facilitate the realization of closed loop control of the temperature,
pressure and tension.
15At zero speed time,can be achieve output 0-100% of Adjustable torque,With zero speed brake
function,instead foreign inverter application on freight elevator and crane.

Payment
1.Please make payment by Secure payment in advance. .

2.please write your detailed delivery address ,contact information and phone number on payment,it isvery important to deliver package successfully.Please make sure your address in Aliexpress is matched with your shipping address before you pay.Specially, for Russian customer, must write the full name(the first name , middel name, last name) for using EMS SHIPPING .Thanks very much.

3.We are not responsible for any custom duty or import tax.Please check with your country customs office to determine what these additional costs will be before bidding/buying.

Delivery
1.All package is standard paper box packing or wooden packing for big order.

2.Pls note the delivery date using different Express , so pls choose the right delivery according to your need .

3.If you prepare to big order ,please contact  us if want delivery by any other method.

4. All packages will shipped with a Tracking Number.

Feedback
your positivefeedback is highly appreciated.We guarantee the quality of our products. Each item will bechecked carefully before delivery.Please contact us immediately if there is any reason you feel.We will always do our best to makethe customer satisfaction.


If you are satisfied with our products and service, please kindly leave a positive five starfeedback for us,It is very important for us . Thanks very much in advance.

Contact us
We will reply to your enquiries as immediately aspossible.However,please note that we have 12-16 hours time difference

with western Europe and 8 hours time difference withU.S.A.Therefore,we promise will try best to reply within 24 hours.

For bulk order,also please contact us for details.
